Model Whirlpool 1414^0A GAS RANGE – Common Parts & Diagrams

xSwitch (For Key No. 352)
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
View on Model
xInstallation Instructions
xInstallation Instructions WPL 300668 Contact Us For Availability
View on Model
1
Set-On-Griddle (Optional)
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
View on Model
1
Screw 10 - 32 x 1/4``
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
View on Model
1
Screw 10-32 x 1/2``
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
View on Model
1
Top Grate (4 Req)
Top Grate (4 Req) WPL 316786 Contact Us For Availability
View on Model
1

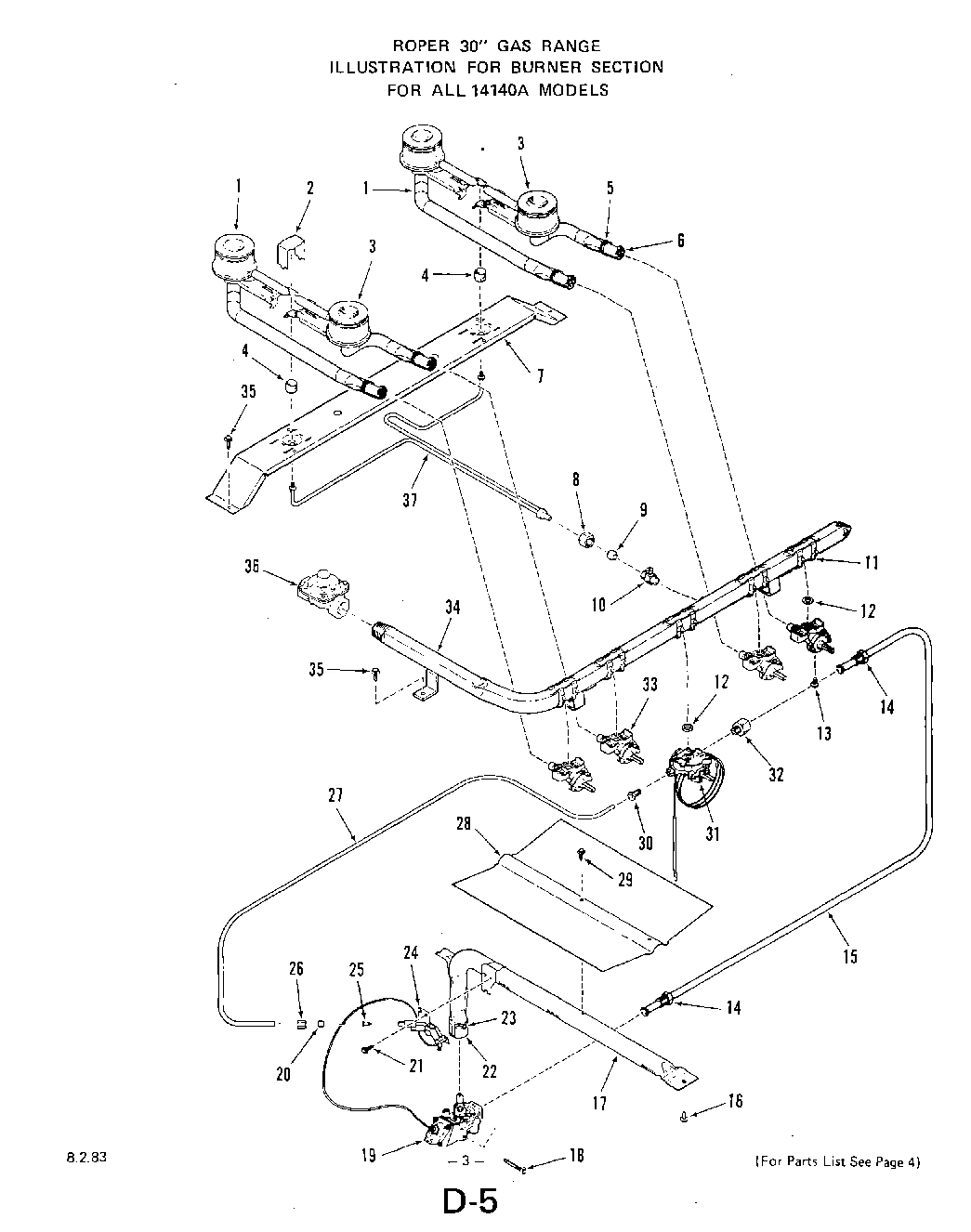

Top Burner-Rear (Inc. Keys 5 & 6)
Top Burner-Rear (Inc. Keys 5 & 6) WPL 310197 Contact Us For Availability
View on Model
1
Screw 6-32x1/2``
Screw 6-32x1/2`` WPL 99931 Contact Us For Availability
View on Model
1
Shield - Flue Deflector
Shield - Flue Deflector WPL 296011 Contact Us For Availability
View on Model
2
Cover - Rotisserie Motor
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
View on Model
2

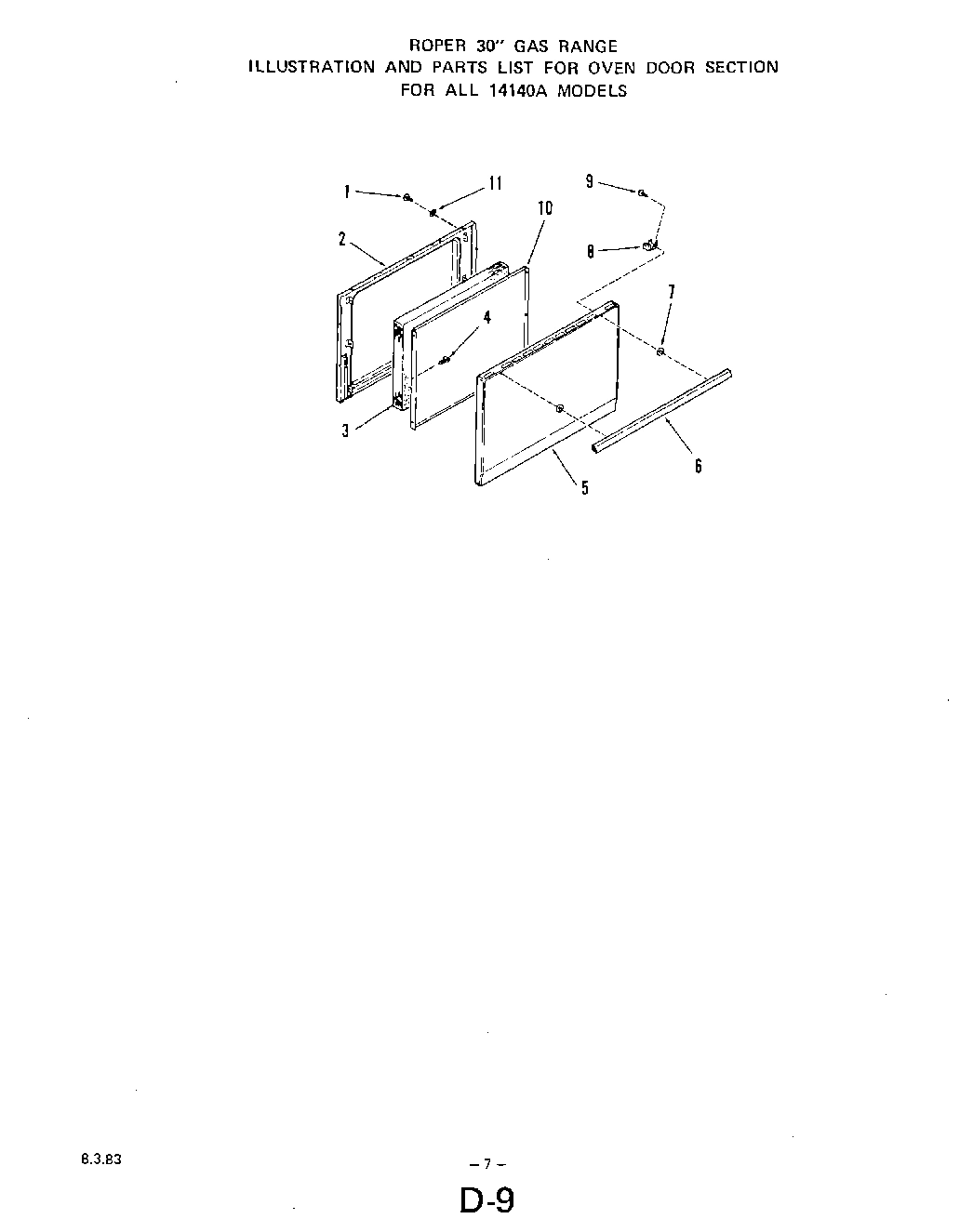

Lining-Oven Door
Lining-Oven Door WPL 318526 Contact Us For Availability
View on Model
2
Shield-Top Pilot (Lt. or Rt.)
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
View on Model
2
Right
Right WPL 326284 Contact Us For Availability
View on Model
2
Left
Left WPL 326285 Contact Us For Availability
View on Model
2

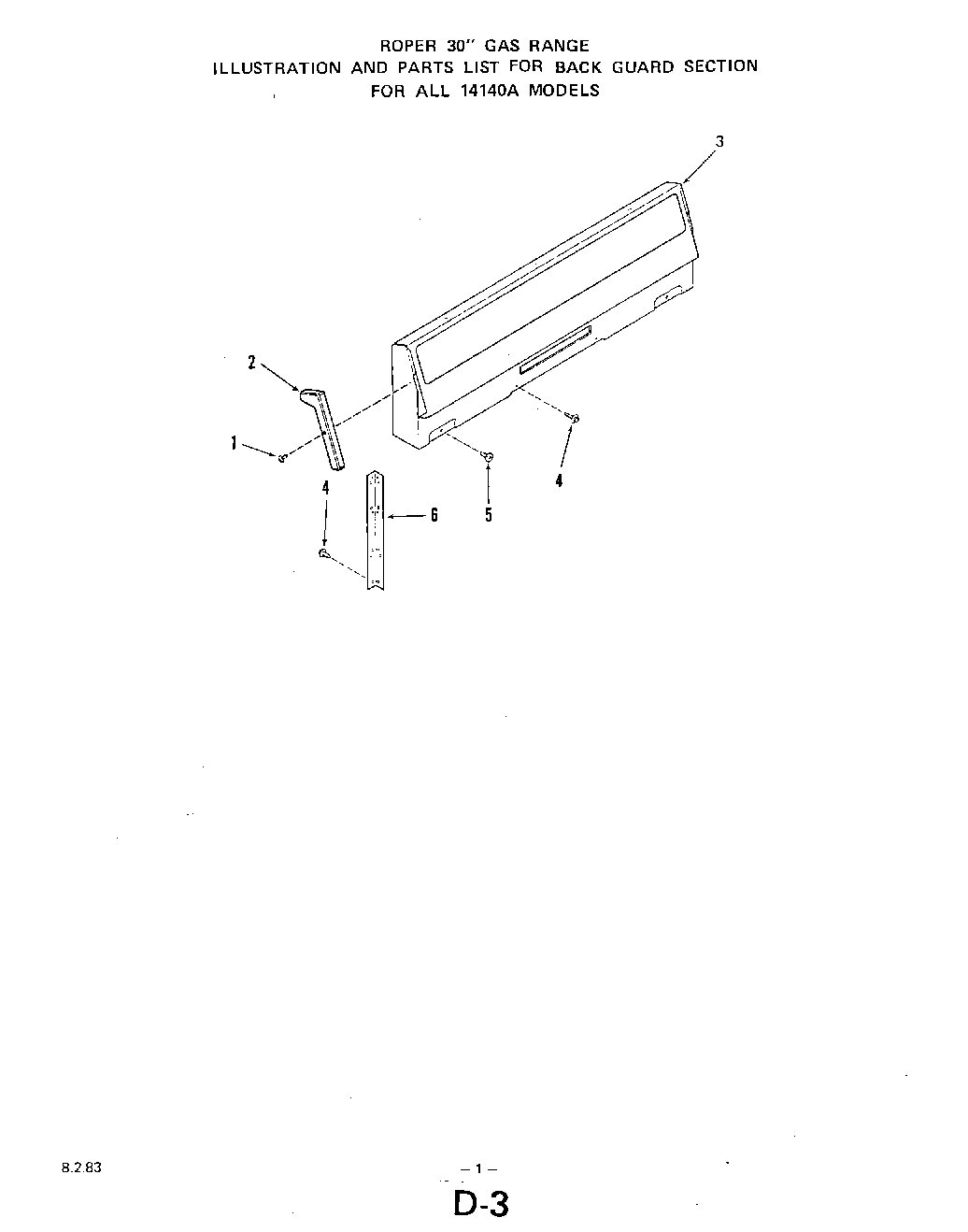

End Cap-Backguard
End Cap-Backguard WPL ARI8156A80 Contact Us For Availability
View on Model
3

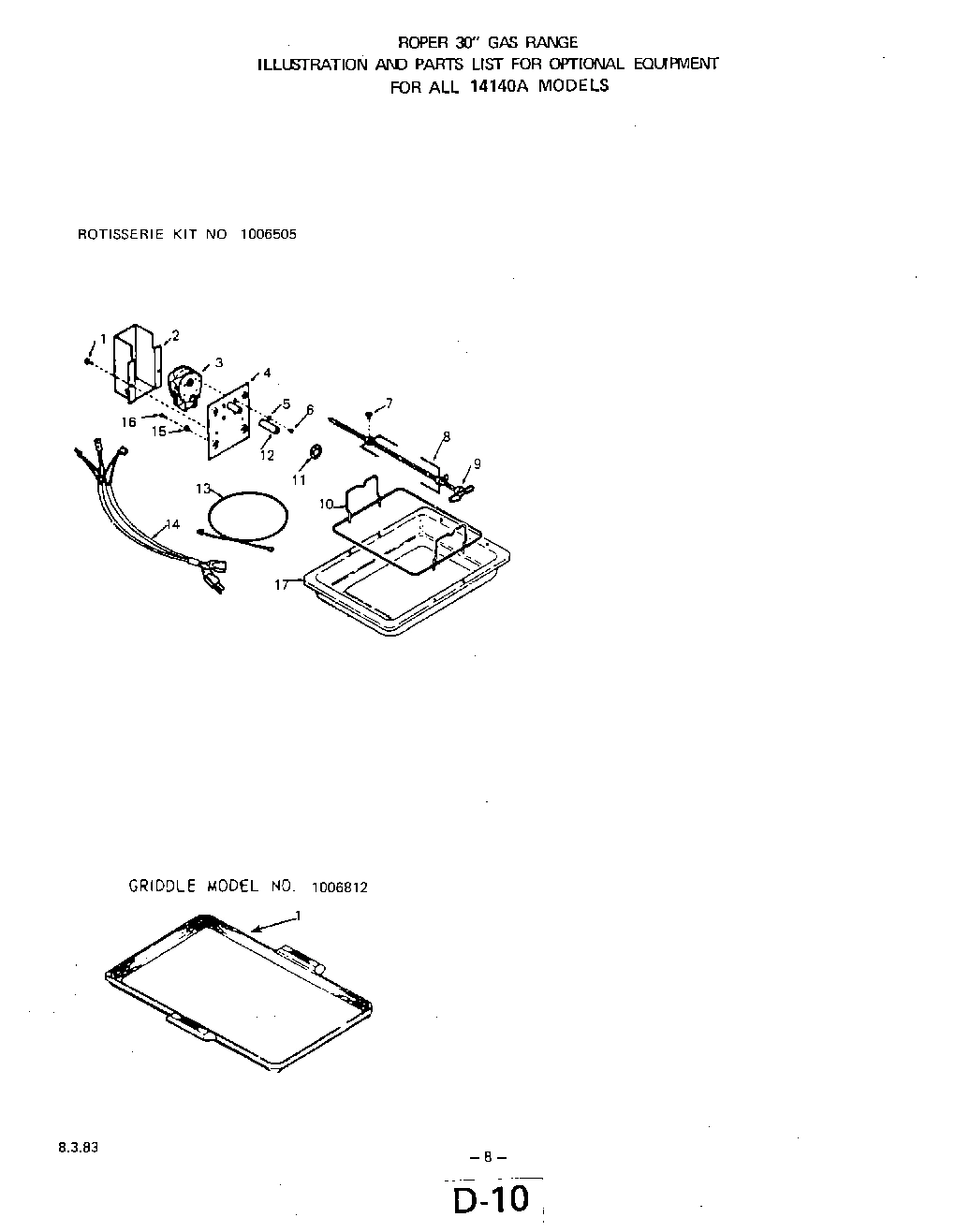

Rotisserie Motor
Rotisserie Motor WPL 106575 Contact Us For Availability
View on Model
3
Insulation-Oven Door
Insulation-Oven Door WPL 296142 Contact Us For Availability
View on Model
3
Right
Right WPL 323404 Contact Us For Availability
View on Model
3
Left
Left WPL 323405 Contact Us For Availability
View on Model
3
Hinge
Hinge WPL ARI8157A39 Contact Us For Availability
View on Model
3
Top Burner-Frt. (Inc. Keys 5 & 6)
Top Burner-Frt. (Inc. Keys 5 & 6) WPL 310196 Contact Us For Availability
View on Model
3
Crosstie-Backguard
Crosstie-Backguard WPL 326750 Contact Us For Availability
View on Model
3
Spacer-Main Top
Spacer-Main Top WPL 303513 Contact Us For Availability
View on Model
4
Mounting Bracket-Rotisserie Motor
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
View on Model
4
hex nut 8-32
hex nut 8-32 WPL 239764 Contact Us For Availability
View on Model
4
Cup-Top Pilot
Cup-Top Pilot WPL 308292 Contact Us For Availability
View on Model
4
White-Right
White-Right WPL 323084 Contact Us For Availability
View on Model
4
White-Left
White-Left WPL 323085 Contact Us For Availability
View on Model
4
Golden Wheat-Right
Golden Wheat-Right WPL 323090 Contact Us For Availability
View on Model
4
Golden Wheat-Left
Golden Wheat-Left WPL 323091 Contact Us For Availability
View on Model
4
Almond-Right
Almond-Right WPL 323092 Contact Us For Availability
View on Model
4
Almond-Left
Almond-Left WPL 323093 Contact Us For Availability
View on Model
4
Body Side
Body Side WPL ARI8160A31 Contact Us For Availability
View on Model
5
Lockwasher 3/16``
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
View on Model
5
White
White WPL 296188 Contact Us For Availability
View on Model
5
Almond
Almond WPL 308418 Contact Us For Availability
View on Model
5
Golden Wheat
Golden Wheat WPL 309041 Contact Us For Availability
View on Model
5
Front Panel-Oven Door
Front Panel-Oven Door WPL ARI8165A79 Contact Us For Availability
View on Model
5
Washer
Washer WPL 310218 Contact Us For Availability
View on Model
5
Screw
Screw WPL 301911 Contact Us For Availability
View on Model
5
Screw 10-32x7/16``
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
View on Model
5
Leg Leveler (4 Req)
Leg Leveler (4 Req) WPL 69065 Contact Us For Availability
View on Model
6
Screw 8-32x1/4``
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
View on Model
6
Screw 10 - 32 x 3/8``
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
View on Model
6
Air Shutter
Air Shutter WPL 301910 Contact Us For Availability
View on Model
6
Support-Backguard (Lt. or Rt.)
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
View on Model
6
Spring-Oven Door (Lt. or Rt.)
Spring-Oven Door (Lt. or Rt.) WPL 308735 Contact Us For Availability
View on Model
7
Thumbscrew
Thumbscrew WPL 70287 Contact Us For Availability
View on Model
7
Support-Top Burners
Support-Top Burners WPL 308297 Contact Us For Availability
View on Model
7
Shoulder Rivet
Shoulder Rivet WPL 70275 Contact Us For Availability
View on Model
8
Skewer
Skewer WPL 88433 Contact Us For Availability
View on Model
8
Spacer-Oven Door (2 Required)
Spacer-Oven Door (2 Required) WPL 296224 Contact Us For Availability
View on Model
8
Burner Box Bottom
Burner Box Bottom WPL 308300 Contact Us For Availability
View on Model
8
Compression Nut 1/4``
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
View on Model
8
Right
Right WPL 296327 Contact Us For Availability
View on Model
8
Broiler Drawer Guide (Inc`s. 7 & 11)
Broiler Drawer Guide (Inc`s. 7 & 11) WPL ARI8161A34 Contact Us For Availability
View on Model
9
Rotisserie Spit
Rotisserie Spit WPL 100092 Contact Us For Availability
View on Model
9
Screw 10 - 32 x 1/2``
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
View on Model
9
Knob-Thermostat
Knob-Thermostat WPL 320905 Contact Us For Availability
View on Model
9
Compression Ball Sleeve 1/4``
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
View on Model
10
Spit Support
Spit Support WPL 232137 Contact Us For Availability
View on Model
10
Retainer-Oven Door Insulation
Retainer-Oven Door Insulation WPL 318463 Contact Us For Availability
View on Model
10
Knob-Gas Valve (4 Req)
Knob-Gas Valve (4 Req) WPL 320904 Contact Us For Availability
View on Model
11
Plug Button
Plug Button WPL 100095 Contact Us For Availability
View on Model
11
Catch - Main Top Strike
Catch - Main Top Strike WPL 24667 Contact Us For Availability
View on Model
11
Clip (10 Req)
Clip (10 Req) WPL 288401 Contact Us For Availability
View on Model
11
Roller
Roller WPL 69006 Contact Us For Availability
View on Model
12
Guide Extension - Rotisserie Motor
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
View on Model
12
White
White WPL 324531 Contact Us For Availability
View on Model
12
Golden Wheat
Golden Wheat WPL 324534 Contact Us For Availability
View on Model
12
Almond
Almond WPL 324535 Contact Us For Availability
View on Model
12
Manifold Panel
Manifold Panel WPL ARI8158A11 Contact Us For Availability
View on Model
12
Gasket (5 Req. for Keys 31 & 33)
Gasket (5 Req. for Keys 31 & 33) WPL 288186 Contact Us For Availability
View on Model
12
Broiler Drawer (Inc`s. 7 & 11)
Broiler Drawer (Inc`s. 7 & 11) WPL 303904 Contact Us For Availability
View on Model
13
White
White WPL 284278 Contact Us For Availability
View on Model
13
Black With 1/4`` Faston & Eyelet Terminals
Black With 1/4`` Faston & Eyelet Terminals WPL 291284 Contact Us For Availability
View on Model
13
White
White WPL 321951 Contact Us For Availability
View on Model
13
Black
Black WPL 321952 Contact Us For Availability
View on Model
13
Fixture Wire Lead With 1/4`` Faston & Piggy B
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL ARI8166A74 Contact Us For Availability
View on Model
13
Strike
Strike WPL 299784 Contact Us For Availability
View on Model
13
Screw (10 Required)
Screw (10 Required) WPL 299137 Contact Us For Availability
View on Model
13
Right
Right WPL 303132 Contact Us For Availability
View on Model
13
Left
Left WPL 303133 Contact Us For Availability
View on Model
13
Hinge-Oven Door
Hinge-Oven Door WPL ARI8162A66 Contact Us For Availability
View on Model
14
Rotisserie Cord
Rotisserie Cord WPL 282924 Contact Us For Availability
View on Model
14
Washer
Washer WPL 99279 Contact Us For Availability
View on Model
14
Inverted Nut 3/8``
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
View on Model
14
Screw 10-32 x 5/8``
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
View on Model
15
Lockwasher
Lockwasher WPL 69603 Contact Us For Availability
View on Model
15
White
White WPL 316813 Contact Us For Availability
View on Model
15
Almond
Almond WPL 316814 Contact Us For Availability
View on Model
15
Golden Wheat
Golden Wheat WPL 316815 Contact Us For Availability
View on Model
15

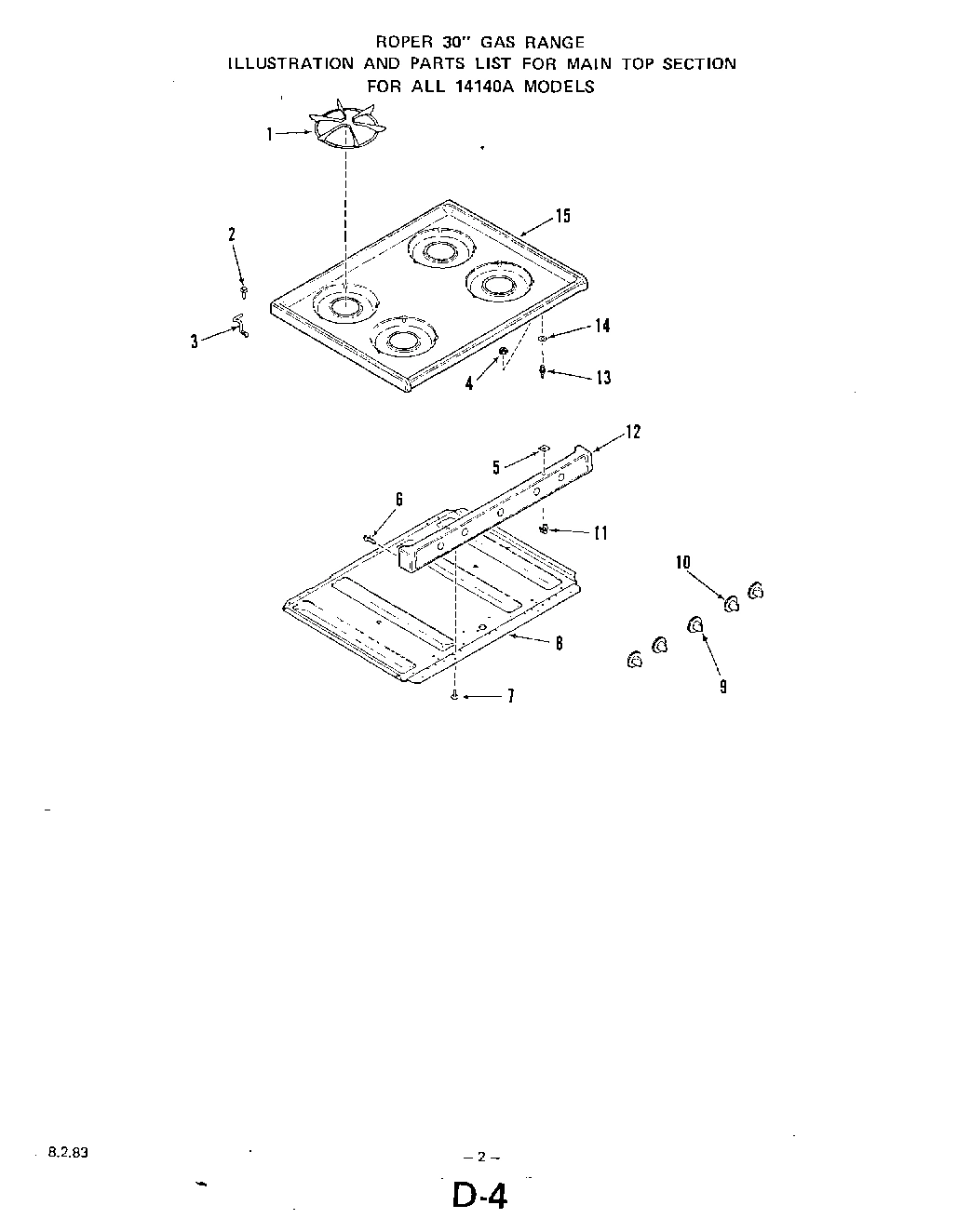

Main Top
Main Top WPL ARI8159A69 Contact Us For Availability
View on Model
15
Tubing 3/8`` (Thmst. to Cont. Valve)
Tubing 3/8`` (Thmst. to Cont. Valve) WPL 315807 Contact Us For Availability
View on Model
15
Broiler Pan Grid
Broiler Pan Grid WPL 313071 Contact Us For Availability
View on Model
16
Retainer-Insulation (Rt. or Lt.)
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
View on Model
17
Rotisserie Pan
Rotisserie Pan WPL 291397 Contact Us For Availability
View on Model
17
Burner-Oven (Inc. Keys 22, 23 & 28)
Burner-Oven (Inc. Keys 22, 23 & 28) WPL 303398 Contact Us For Availability
View on Model
17
Grommet - Screw (8 Req.)
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
View on Model
18
Screw 10-32x2``
Screw 10-32x2`` WPL 112365 Contact Us For Availability
View on Model
18

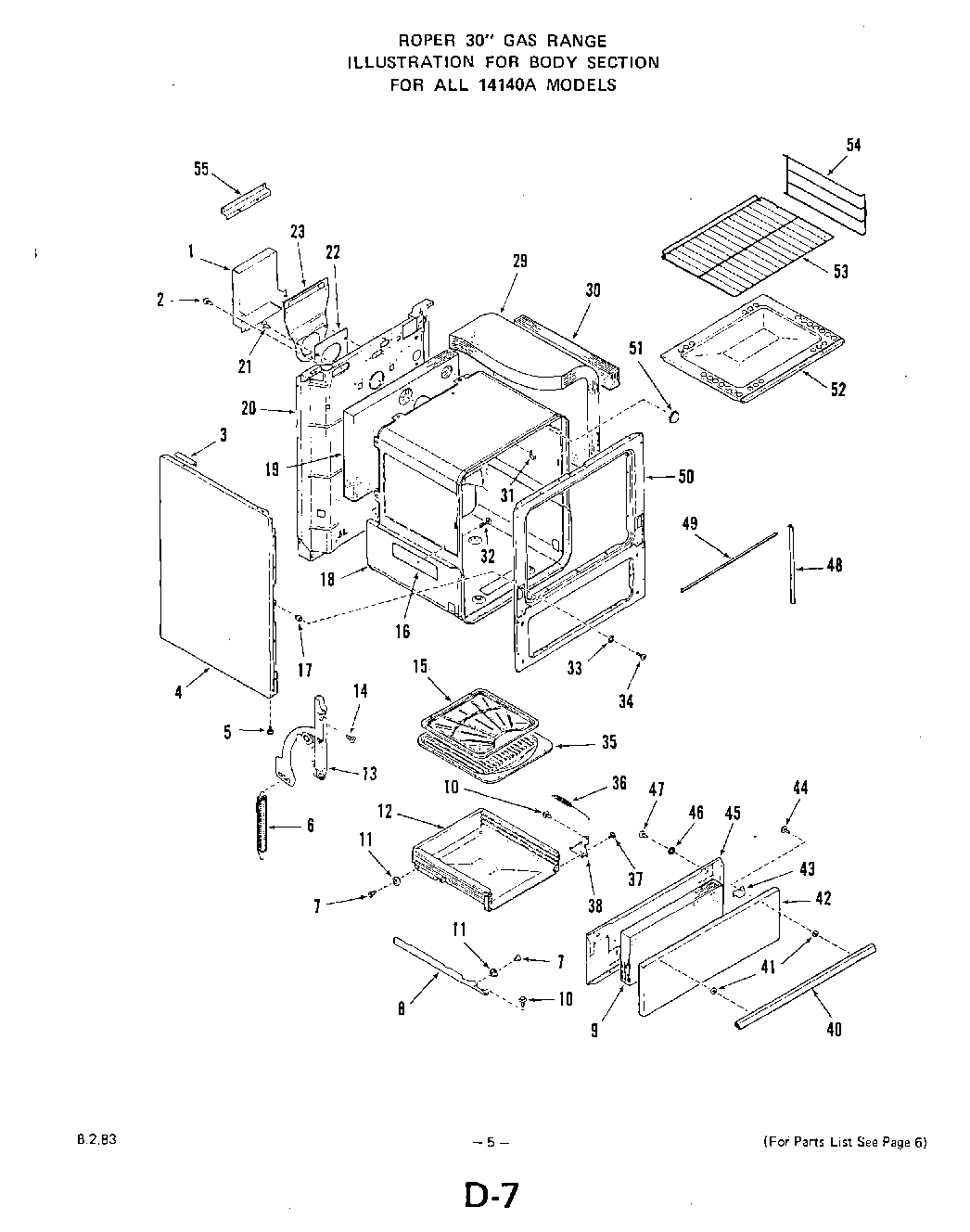

Oven Body
Oven Body WPL 322913 Contact Us For Availability
View on Model
19
Control Valve (Inc`s. Keys 24 & 25)
Control Valve (Inc`s. Keys 24 & 25) WPL 294529 Contact Us For Availability
View on Model
19
Insulation - Oven Back
Insulation - Oven Back WPL 296140 Contact Us For Availability
View on Model
20
Compression Ball Sleeve 3/16``
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
View on Model
20
Main Back
Main Back WPL 324046 Contact Us For Availability
View on Model
21
Screw 10-24x1/4``
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
View on Model
21
Screw 10 - 32 x 17/32``
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
View on Model
22
Gasket-Flue Deflector
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
View on Model
22
Air Shutter
Air Shutter WPL 239267 Contact Us For Availability
View on Model
23
Screw
Screw WPL 239268 Contact Us For Availability
View on Model
23
Flue Deflector
Flue Deflector WPL 300917 Contact Us For Availability
View on Model
24
Pilot-Oven (Inc. Key 25)
Pilot-Oven (Inc. Key 25) WPL 294528 Contact Us For Availability
View on Model
25
Orifice Cup
Orifice Cup WPL 113117 Contact Us For Availability
View on Model
26
Compression Nut 3/16``
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
View on Model
27
Tubing 3/16`` (Thermostat to Pilot)
Tubing 3/16`` (Thermostat to Pilot) WPL 322447 Contact Us For Availability
View on Model
28
Baffle - Oven Burner
Baffle - Oven Burner WPL 302729 Contact Us For Availability
View on Model
29
Insulation - Oven Top & Sides (1 Piece)
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
View on Model
30
Loxit Nut 3/16``
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
View on Model
31
Thermostat-Inc. Keys 12 & 32)
Thermostat-Inc. Keys 12 & 32) WPL 302727 Contact Us For Availability
View on Model
31
Thermostat Bulb Clip (2 Required)
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
View on Model
32
Fitting
Fitting WPL 303503 Contact Us For Availability
View on Model
32
Dart-Button Head (2 Required)
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
View on Model
33
Gas Valve (4 Required-Inc`s. Key 12)
Gas Valve (4 Required-Inc`s. Key 12) WPL 324988 Contact Us For Availability
View on Model
33
Washer
Washer WPL 303963 Contact Us For Availability
View on Model
34
Manifold Pipe
Manifold Pipe WPL 308323 Contact Us For Availability
View on Model
35
Broiler Pan
Broiler Pan WPL 290171 Contact Us For Availability
View on Model
36
Pressure Regulator
Pressure Regulator WPL 324529 Contact Us For Availability
View on Model
36
Spring - Broiler Door (Rt or Lt)
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
View on Model
37
Pilot Tube (Inc. Keys 8 & 9)
Pilot Tube (Inc. Keys 8 & 9) WPL 325683 Contact Us For Availability
View on Model
37
Shoulder Rivet
Shoulder Rivet WPL 305064 Contact Us For Availability
View on Model
38
Right
Right WPL 296124 Contact Us For Availability
View on Model
38
Left
Left WPL 296125 Contact Us For Availability
View on Model
38
Hinge-Broiler Door
Hinge-Broiler Door WPL ARI8163A24 Contact Us For Availability
View on Model
40
Handle-Broiler Door
Handle-Broiler Door WPL 292240 Contact Us For Availability
View on Model
41
spacer-handle
spacer-handle WPL 302343 Contact Us For Availability
View on Model
42
White
White WPL 296131 Contact Us For Availability
View on Model
42
Almond
Almond WPL 308346 Contact Us For Availability
View on Model
42
Golden Wheat
Golden Wheat WPL 308977 Contact Us For Availability
View on Model
42
Front Panel-Broiler Door
Front Panel-Broiler Door WPL ARI8164A75 Contact Us For Availability
View on Model
43
Spacer-Broiler Door (2 Req)
Spacer-Broiler Door (2 Req) WPL 296137 Contact Us For Availability
View on Model
44
Screw 10-32x7/16``
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
View on Model
45
Lining - Broiler Door
Lining - Broiler Door WPL 296332 Contact Us For Availability
View on Model
46
Washer
Washer WPL 21067 Contact Us For Availability
View on Model
47
Screw 10-32x3/
Screw 10-32x3/ WPL 239113 Contact Us For Availability
View on Model
48
WPL  314573
WPL 314573 WPL 314573 Contact Us For Availability
View on Model
49
WPL  314574
WPL 314574 WPL 314574 Contact Us For Availability
View on Model
50
WPL  316994
WPL 316994 WPL 316994 Contact Us For Availability
View on Model
51
WPL  101063
WPL 101063 WPL 101063 Contact Us For Availability
View on Model
52
WPL  296069
WPL 296069 WPL 296069 Contact Us For Availability
View on Model
53
WPL  305408
WPL 305408 WPL 305408 Contact Us For Availability
View on Model
54
WPL  305409
WPL 305409 WPL 305409 Contact Us For Availability
View on Model
55
WPL  301624
WPL 301624 WPL 301624 Contact Us For Availability
View on Model
